MSBS 762N DMR Airsoft Replica 🇵🇱

This blog is linked to the previous MSBS Grot C10.5A2 one :
https://benen3d.myshopify.com/blogs/msbs-grot/replique-complete-msbs-grot-c10-5a2-aeg

After doing the Grot C, it was obvious that i was meant for making the 762N variant.
So here we go !

The MSBS 762N is a variant of the Grot chambered in 7.62x51.
Designed to go over the old SVD, and close the gap with the TRG-22 and TRG M10 currently used.

You have multiple options :
16" or 20" barrel
Precision adjustable stock, Grot C folding stock, and AR Stock Tube
Handguards length may also vary

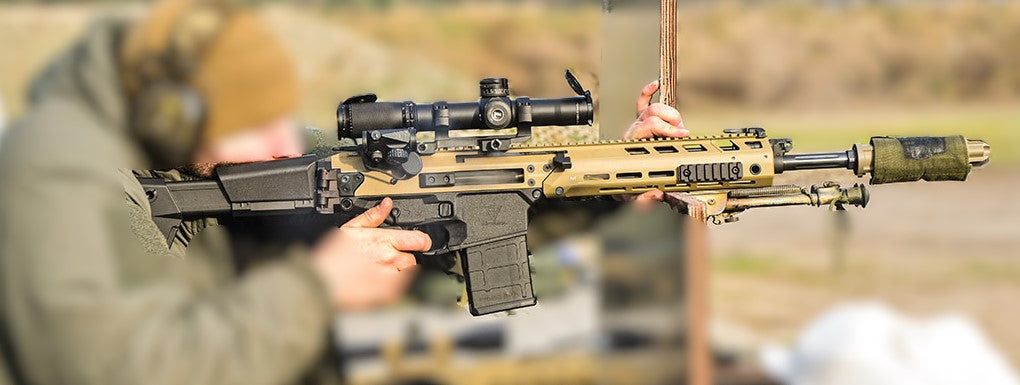

The Polish 6th Airborne regiment are using the variant with Ar stock tube, 16" barrel, and 5 slot Mlok handguard, along with Lancer mags :

The Grot 5.56, and 7.62 share the same geometry, the same design.
They also share some parts together.

"Grot 762N vs Grot C", it's the same relevancy as "AR15 vs AR10".

Not my first BBQ, i already did the Grot C, so i already have some basis to work around.

Handguard's first on the menu

Then Upper

I've made it right side ejection only, for a better integrity of the whole upper section.

Adding gazzblock, the base is different from the Grot C one.

And adding the charging handle, and ejection window.

Lower is elongated, between 15 and 20mm, on the magwell part, and a bit in the back too.

Lower is transient on this render.

Ejection Port and Cover's are done.

They are different from the Grot C.

Handguard editing, to match the used one version

With the Grot C Stock, and the provisional lower.

Instead of modifying the existing lower, it's better to redo it from zero.

The lower is a bit thicker on the magwell zone, and the rear vary a bit since the stock interface is slightly different.





...

Thoses "wired" renders are specially made so you can see the complex geometry, and hope it will help you understand the amount of work needed for such accurate designs/works...

And of course since it's made for 3Dprinting, it's optimized for this usage, but can also be made in CNC, for a way bigger cost.

And for those who thinks they have the right to criticize something they are completely uncapable of doing, i am still waiting for you to do such things in the same timeframe as i do them ;)
